API Automation Testing Project

A comprehensive API testing automation project using Newman (Postman CLI) with CI/CD integration and performance reporting hosted on GitHub Pages.

🚀 Overview

This project provides automated API testing for a Node.js CRUD application with the following features:

  • Local Testing: Run Newman tests locally using batch scripts
  • CI/CD Integration: Automated testing on every push to master branch
  • Performance Reporting: Test results hosted on GitHub Pages
  • Multiple Environments: Support for development and production environments
  • Comprehensive Test Coverage: Full CRUD operations testing (Create, Read, Update, Delete)

📁 Project Structure

├── .github/workflows/
│   └── ci-cd.yml                    # GitHub Actions CI/CD pipeline
├── performance/
│   ├── performance-report.html  # Performance report from Postman GUI
│   └── performance-report.pdf   # Performance report from POstman GUI
├── postman/
│   ├── NODE-E2E.postman_collection.json    # Postman test collection
│   ├── dev-env.postman_environment.json    # Development environment
│   └── prod-env.postman_environment.json   # Production environment
├── script/
│   └── collection-runner.bat       # Local Newman runner script
├── reports/                         # Local test reports (gitignored)
└── README.md

🛠️ Prerequisites

Local Development

Installation

# Install Newman globally
npm install -g newman

# Install Newman reporters
npm install -g newman-reporter-html
npm install -g newman-reporter-htmlextra

🏃‍♂️ Running Tests

Using Postman Collection Runner (GUI)

The Postman Collection Runner provides a powerful GUI interface for executing your test collection with detailed performance metrics and HTML report generation.

1. Import Collection and Environment

Option A: Import Files

  1. Open Postman Desktop or navigate to Postman Web
  2. Click Import button in the top left
  3. Drag and drop or select these files:
    • postman/NODE-E2E.postman_collection.json
    • postman/prod-env.postman_environment.json (for production)
    • postman/dev-env.postman_environment.json (for development)

Option B: Import via URL (if hosted on GitHub)

  1. Click Import → Link
  2. Paste the raw GitHub URLs for each file

2. Configure Collection Runner

  1. Click Collections in the sidebar
  2. Find your NODE-E2E collection
Documentation

Screenshot

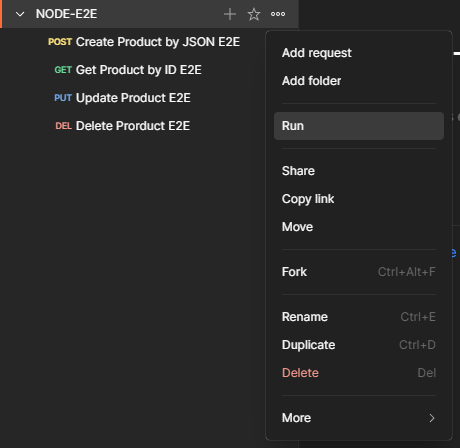

Collection runner option

  1. Click Performance Tab

  2. Set up your performance test:

    Performance Basic Setup:

    • Load profile: Select Fixed, Ramp up, Spike or Peak
    • Virtual users: Set to 5 (or desired number)
    • Test duration: Set to 1 (in minutes)

    Performance Metric (Pass test if):

    • Metric: Response Time, Error, Requests per second
    • Condition: is greater than, is less than, is less than equal to, is greater than equal to
    • Value: desired number
Documentation

Screenshot

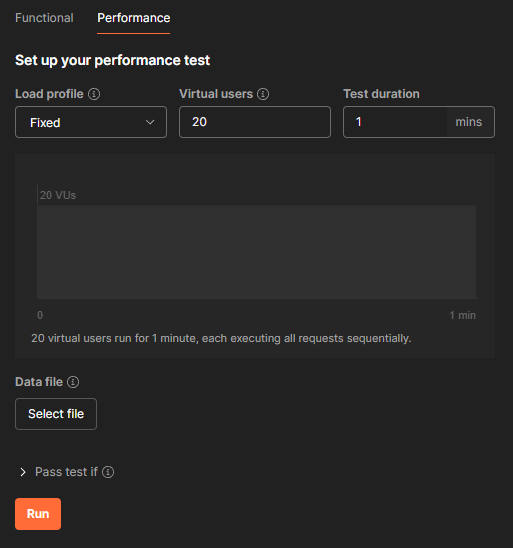

Fixed Load Profile Testing

Screenshot

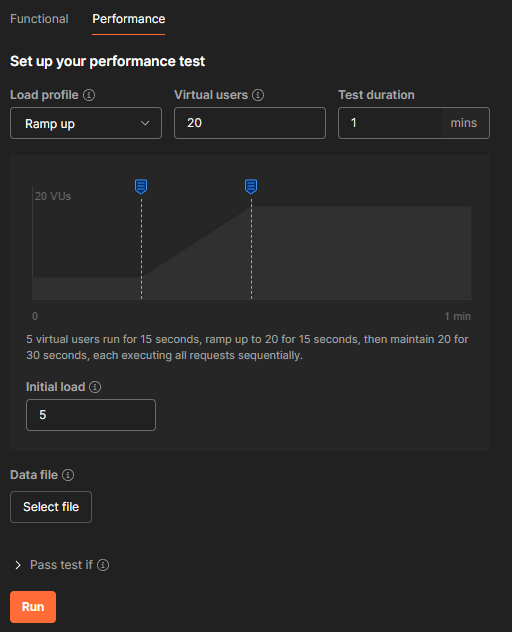

Ramp Up Load Profile Testing

Screenshot

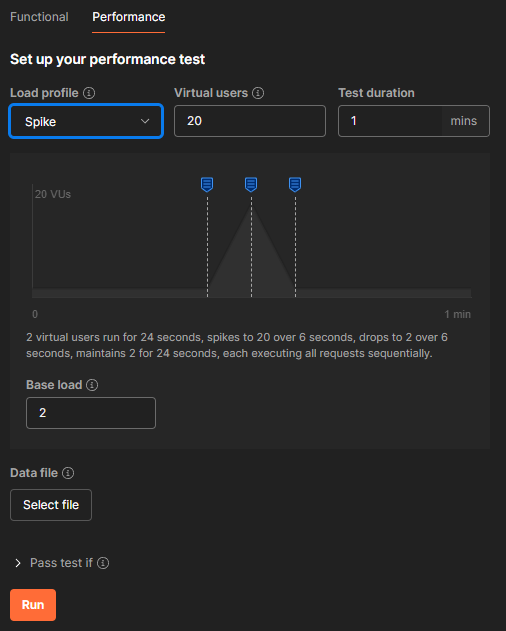

Spike Load Profile Testing

Screenshot

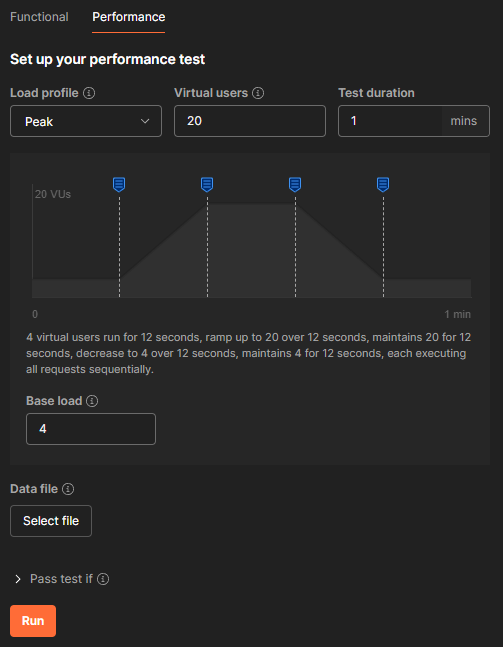

Peak Load Profile Testing

3. Execute Performance Run

  1. Click Run NODE-E2E button
  2. Monitor real-time execution in the runner interface
  3. View detailed request/response data, test results, and timing metrics
  4. Watch the progress bar and individual test status
Documentation

Screenshot

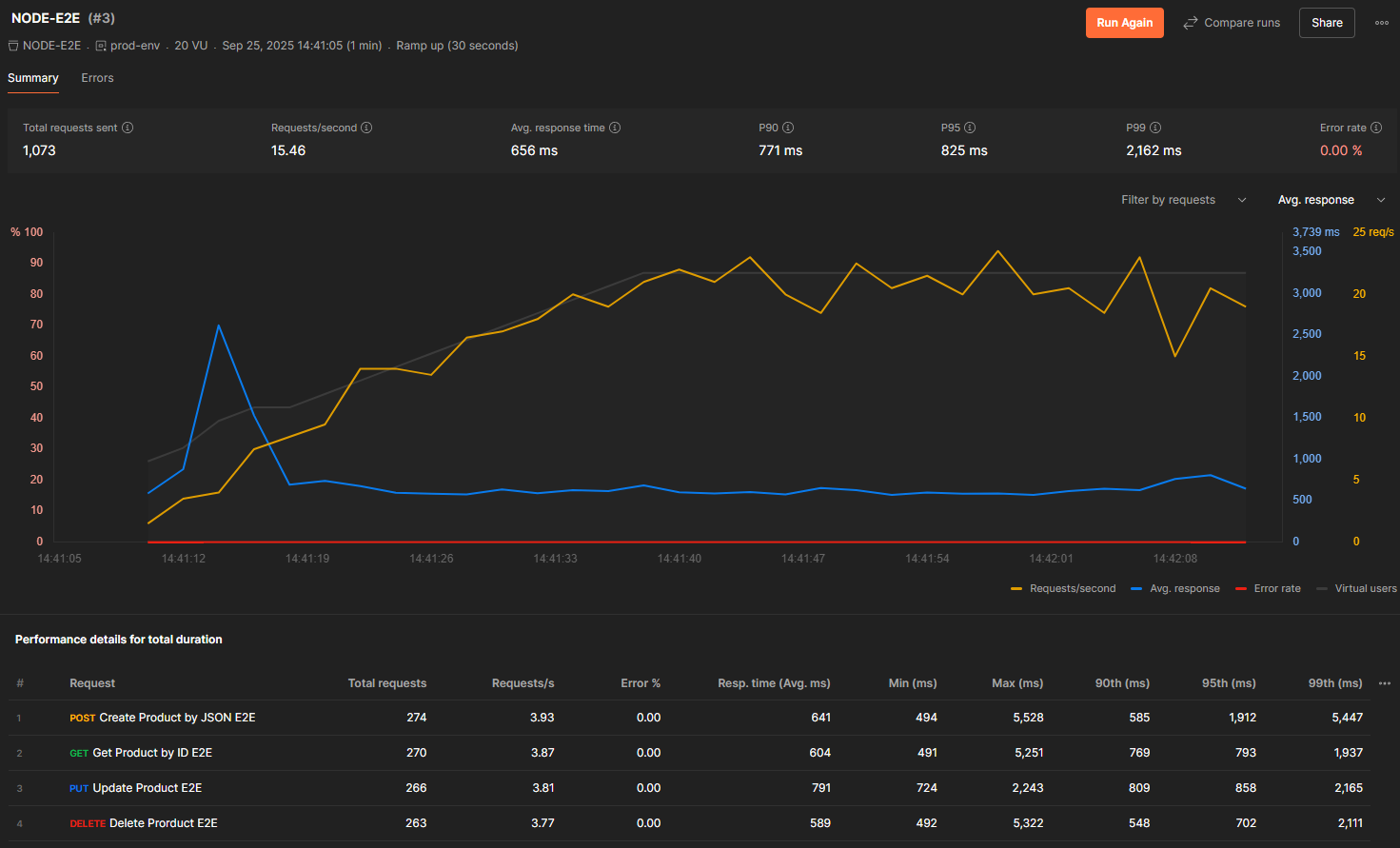

Performance collection runner test result

4. Download HTML Performance Report

After the collection run completes:

  1. View Results Summary:

    • Total requests executed
    • Pass/fail test counts
    • Average response time
    • Individual request performance metrics

  2. Export HTML Report:

    • Click Export Results button (top right of runner results)
    • Select Export as HTML
    • Choose download location

    • The HTML report includes:

      • ✅ Complete test execution summary
      • ✅ Request/response details with timing
      • ✅ Test assertions results
      • ✅ Performance metrics and charts
      • ✅ Environment variables used
      • ✅ Console logs and error details

  3. Report Features:

    • Interactive charts showing response times
    • Detailed request/response inspection
    • Color-coded test results (pass/fail)
    • Performance trends across iterations
    • Export-friendly format for sharing

5. Performance Analysis

The HTML report provides comprehensive performance insights:

  • Response Time Analysis: Min/max/average response times per endpoint
  • Throughput Metrics: Requests per second calculations
  • Error Rate Tracking: Success/failure ratios
  • Test Coverage: Assertion results across all test scenarios
  • Timeline View: Chronological execution flow
  • Performance Trends: Multi-iteration comparison

Using Batch Script (Windows)

  1. Update the BASE_DIR path in script/collection-runner.bat to match your project location
  2. Run the script:
    cd script
collection-runner.bat

Using Newman Command Line

# Run with production environment
newman run postman/NODE-E2E.postman_collection.json \
  --environment postman/prod-env.postman_environment.json \
  --iteration-count 5 \
  --reporters cli,html,json,junit \
  --reporter-html-export reports/newman-report.html \
  --reporter-json-export reports/newman-report.json \
  --reporter-junit-export reports/newman-report.xml \
  --delay-request 1000 \
  --timeout-request 30000

# Run with development environment
newman run postman/NODE-E2E.postman_collection.json \
  --environment postman/dev-env.postman_environment.json \
  --iteration-count 1

🔄 CI/CD Pipeline

The project includes a comprehensive GitHub Actions workflow (.github/workflows/ci-cd.yml) that:

Test Job

  • ✅ Runs Newman tests automatically on push to master
  • ✅ Uses production environment configuration
  • ✅ Executes 5 iterations with request delays
  • ✅ Generates multiple report formats (CLI, JSON, JUnit)
  • ✅ Uploads test artifacts for 30 days retention

Deploy Job

  • ✅ Deploys test results to GitHub Pages
  • ✅ Creates performance reports dashboard
  • ✅ Runs only after test completion
  • ✅ Updates on every master branch push

Workflow Features

  • Concurrent Control: Cancels previous deployments
  • Error Handling: Continues pipeline even if tests fail
  • Artifact Management: Unique naming with run numbers
  • Environment Flexibility: Easy switching between dev/prod

📊 Test Coverage

The E2E test collection covers complete CRUD operations:

🆕 Create Product

  • Endpoint: POST /api/products
  • Validation: Schema validation, field types, MongoDB ObjectId format
  • Environment: Stores created product ID for subsequent tests

📖 Read Product

  • Endpoint: GET /api/products/{id}
  • Validation: Response structure, data integrity, field validation

✏️ Update Product

  • Endpoint: PUT /api/products/{id}
  • Validation: Updated fields, schema compliance, timestamp validation

🗑️ Delete Product

  • Endpoint: DELETE /api/products/{id}
  • Validation: Deletion confirmation, proper response format

Test Validations Include:

  • JSON Schema validation
  • Field type checking (string, integer, ObjectId)
  • ISO8601 timestamp format validation
  • MongoDB ObjectId pattern matching
  • Response key existence verification
  • Business logic validation (positive values, non-empty strings)

🌐 Environments

Development Environment

  • Base URL: http://localhost:3000
  • Test Data: Bakpia (Indonesian traditional food)
  • Use Case: Local development and testing

Production Environment

  • Base URL: https://simple-crud-apps.vercel.app
  • Test Data: Ketoprak (Indonesian traditional food)
  • Use Case: Production API testing and CI/CD

📈 Performance Reporting

GitHub Pages Integration

Test results are automatically published to GitHub Pages:

  • URL: https://[username].github.io/[repository-name]
  • Content: Performance reports and test summaries
  • Updates: Automatic on every master branch push

Report Types

  1. HTML Reports: Visual test execution results
  2. JSON Reports: Machine-readable test data
  3. JUnit Reports: CI/CD integration compatible
  4. Performance Dashboard: Hosted on GitHub Pages

⚙️ Configuration

Customizing Test Parameters

Edit the CI/CD workflow parameters in .github/workflows/ci-cd.yml:

newman run "$COLLECTION" \
  --environment "$ENVIRONMENT" \
  --iteration-count 5        # Number of test iterations
  --timeout-request 30000    # Request timeout (30 seconds)
  --delay-request 1000       # Delay between requests (1 second)

Environment Variables

Update environment files in the postman/ directory:

  • Modify baseUrl for different API endpoints
  • Adjust test data values (productName, productPrice, etc.)
  • Configure environment-specific settings

Local Script Configuration

Update paths in script/collection-runner.bat:

set BASE_DIR=C:\Your\Project\Path\

🔧 Troubleshooting

Common Issues

  1. Collection/Environment Not Found

    • Verify file paths in the script
    • Check file names match exactly
    • Ensure files are in the correct directories

  2. Newman Command Not Found

    • Install Newman globally: npm install -g newman
    • Verify Node.js installation
    • Check PATH environment variable

  3. API Connection Issues

    • Verify API endpoint availability
    • Check network connectivity
    • Validate environment configuration

  4. GitHub Actions Failures

    • Check workflow logs in Actions tab
    • Verify repository permissions
    • Ensure GitHub Pages is enabled

📝 Contributing

  1. Fork the repository
  2. Create a feature branch
  3. Add or modify test cases in the Postman collection
  4. Update environment files if needed
  5. Test locally using the batch script
  6. Submit a pull request

📄 License

This project is open source and available under the MIT License.

Happy Testing! 🚀
